Characterization of structural building damage in post-disaster using GLCM-PCA analysis integration

Almais, Agung Teguh Wibowo, Susilo, Adi, Naba, Agus, Sarosa, Moechammad, Juwono, Alamsyah, Crysdian, Cahyo ORCID: https://orcid.org/0000-0002-7488-6217, muslim, Muh Aziz and Wicaksono, Hendro (2024) Characterization of structural building damage in post-disaster using GLCM-PCA analysis integration. IEEE Access, 12. 146190 -146201. ISSN 2169-3536

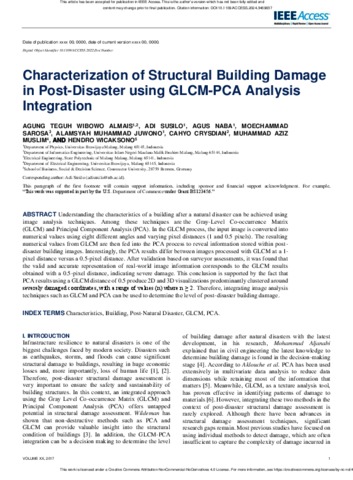

Text 20601.pdf - Published Version Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (1MB)

Abstract

Understanding the characteristics of a building after a natural disaster can be achieved using image analysis techniques. Among these techniques are the Gray-Level Co-occurrence Matrix (GLCM) and Principal Component Analysis (PCA). In the GLCM process, the input image is converted into numerical values using eight different angles and varying pixel distances (1 and 0.5 pixels). The resulting numerical values from GLCM are then fed into the PCA process to reveal information stored within post-disaster building images. Interestingly, the PCA results differ between images processed with GLCM at a 1-pixel distance versus a 0.5-pixel distance. After validation based on surveyor assessments, it was found that the valid and accurate representation of real-world image information corresponds to the GLCM results obtained with a 0.5-pixel distance, indicating severe damage. This conclusion is supported by the fact that PCA results using a GLCM distance of 0.5 produce 2D and 3D visualizations predominantly clustered around severely damaged coordinates, with a range of values (n) where n ≥ 2. Therefore, integrating image analysis techniques such as GLCM and PCA can be used to determine the level of post-disaster building damage.

Item Type:	Journal Article
Keywords:	Characteristics; Building; Post-Natural Disaster; GLCM; PCA
Subjects:	04 EARTH SCIENCES > 0404 Geophysics 08 INFORMATION AND COMPUTING SCIENCES > 0801 Artificial Intelligence and Image Processing 08 INFORMATION AND COMPUTING SCIENCES > 0803 Computer Software 08 INFORMATION AND COMPUTING SCIENCES > 0806 Information Systems
Divisions:	Faculty of Technology > Department of Informatics Engineering
Depositing User:	Agung teguh Wibowo Almais
Date Deposited:	23 Oct 2024 14:09
